What is an enclave connection?

Enclave connections enable network traffic to flow between an enclave and a trusted destination defined within the community boundary. The destination of every enclave connection is either an enclave endpoint or community endpoint. Enclave connections allow resources within your enclave to access services and data running within another enclave (via an enclave endpoint), or to trusted private and/or public destinations defined at the community level (via a community endpoint).

Enclave connections can also enable secured public access to resources within an enclave through a transit hub connection. In these cases, the transit hub would be the source of the connection and an enclave endpoint would be the destination.

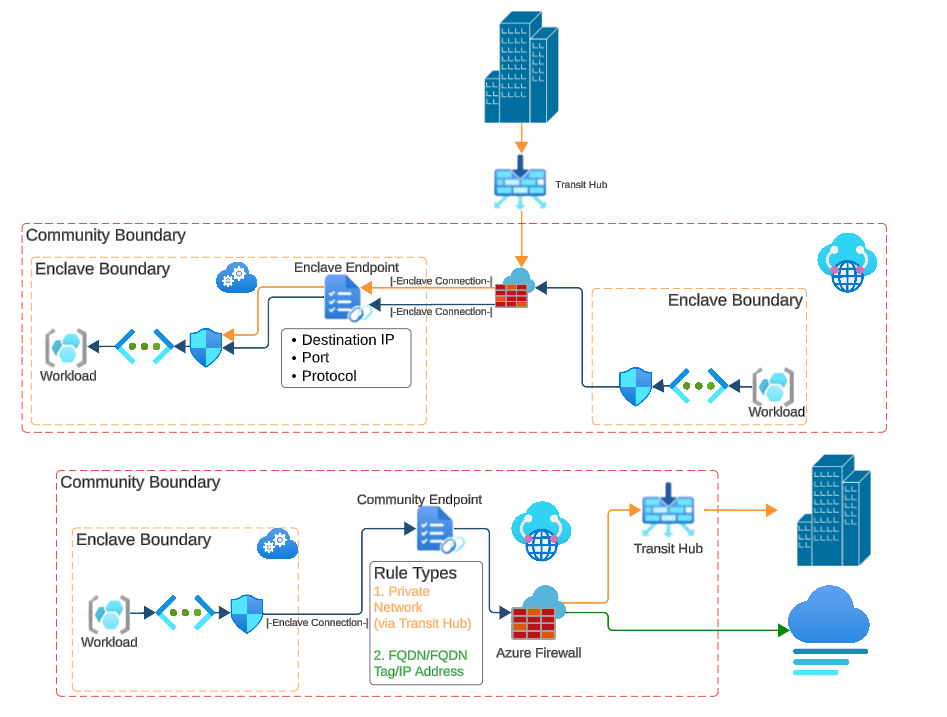

Architecture of an enclave connection

Diagram showing connections between two enclaves and connections to external resources.

Enclave connection types

Enclave connections support multiple source and destination configurations:

Enclave-to-enclave connections

Connect resources in one enclave to resources in another enclave within the same community. Enclave to enclave connections enable secure communication between isolated workloads while maintaining network boundaries.

Enclave-to-community endpoint connections

Connect resources in an enclave to external destinations defined in a community endpoint. Community endpoints enable controlled outbound access to:

  • Public internet destinations (via IP, FQDN, FQDN Tag, or Service Tag rules)
  • External private networks (via transit hub connections)

Transit hub-to-enclave connections

Enable inbound connectivity from external networks to resources within an enclave. The transit hub serves as the connection source, allowing traffic from on-premises networks or other Azure virtual networks to reach enclave workloads.

When you set up this connectivity, you can:

  • Route traffic between on-premises locations - Connect multiple VPN or ExpressRoute connections through the community Virtual WAN
  • Enable spoke-to-spoke communication - Allow traffic between virtual networks peered to different transit hubs

Transit hub interconnection supports scenarios where:

  • Multiple regional offices need to communicate through a centralized Azure environment
  • Different Azure subscriptions with separate virtual networks require connectivity
  • Hybrid connectivity patterns require traffic to flow between ExpressRoute and VPN connections

To create a transit hub-to-transit hub connection, both transit hubs must exist within the same community. The connection enables bidirectional traffic flow based on the configured routing and firewall rules.

Connection security

Multiple layers of network security govern all enclave connections to maintain isolation and control:

  • Azure Firewall rules - Traffic is evaluated against community-level firewall policies
  • Network security groups - Enclave-level network security groups (NSGs) provide extra traffic filtering

Template

See template documentation
